Heavy Duty Curved W-Beam Guard Fence (Type D) Curved W-Beam 45-degree and 90degree Steel Fences. Can be paired with Ball Fence Handrail System. Protect Pedestrians and Assets, from collisions with slow moving vehicles, in and around schools, car parks and commercial and industrial premises. Modular design provides a multitude of choices in configuration.
Features of Heavy-Duty Curved W-Beam Guard Fence:
Complies with VicRoads SD3671-E requirements for 'Type D' guard fence
*Non-Highway Applications. Shall only be used where impact speeds are less than 30km/h.*
Heavy Duty Steel construction
Can be paired with a Ball Fence Handrail system NOTE Ball-Fence posts should be on the pedestrian side of W-Beam posts

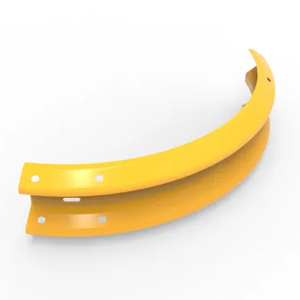

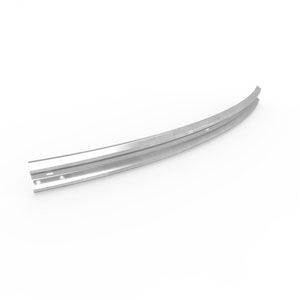

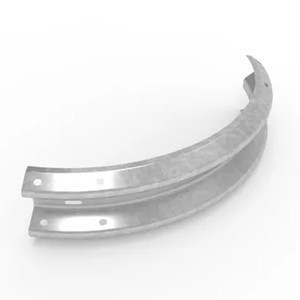

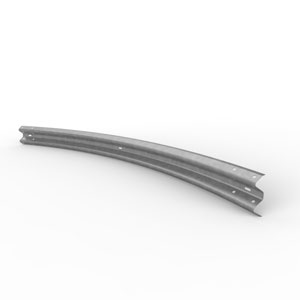

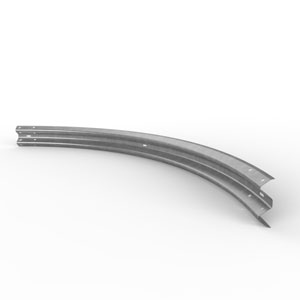

External and Internal Curved Guard Rails
45-degree and 90-degree curves
Surface Mount or In-Ground
Hot dipped galvanised finish
Large choice of rail lengths, post options and accessories
Posts supplied with fixings
Easily Configured to suit most non-highway applications
Simple to repair or modify
Interchangeable with competitors W-Beam Systems
Order Codes See Tables Below
Specifications of W-Beam Curved Rail Mild Steel 2.75mm thick. Mild Steel 178 x 76 x 6mm
Rails: 13kgs per metre approx. Posts: 18kgs each approx.
If you'd like more information or if you have any enquiries about the W-Beam Curved Rails Guard Fence (TYPE D), please call +612 9457-2700 or fill in this form and we'll contact you.
