We offer a warehouse safety barrier that is both flexible and cost-effective, designed to regulate pedestrian movement.
FEATURES of ER-Rail Modular Economy Post and Rail System:
SPECIFICATIONS of ER Rails
Description | Modular Economy Post and Rail System |
Material: | Extruded Aluminium section |
Finish: | Powder-coated Yellow |
Length: | 2, 3 or 6 metres |
Size: | 80 x 30 with 1.75mm wall |
Weight: | 1.45kg per metre |
Click here for Bollard Specifications
Part No. | Description |

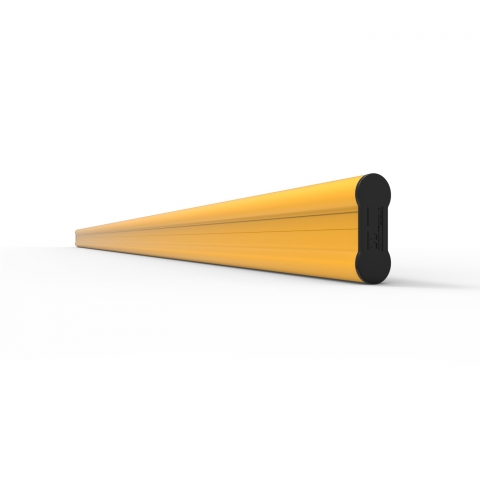

ER8030-2PA | ER-Rail 80 x 30mm x 2mtr with end caps |
ER8030-3PA | ER-Rail 80 x 30mm x 3mtr with end caps |

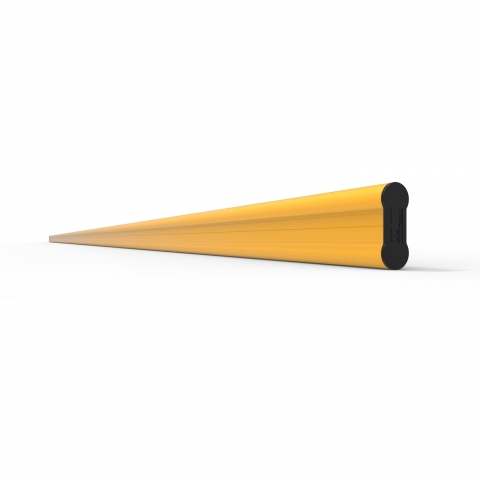

ER8030-6PA | ER-Rail 80 x 30mm x 6mtr with end caps |

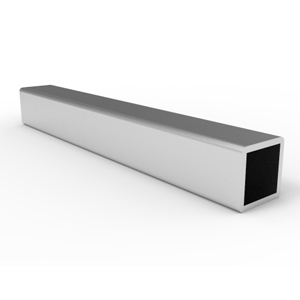

ERSJ20 | ER-Rail Slip Joiner Connectors |

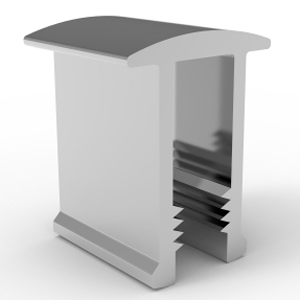

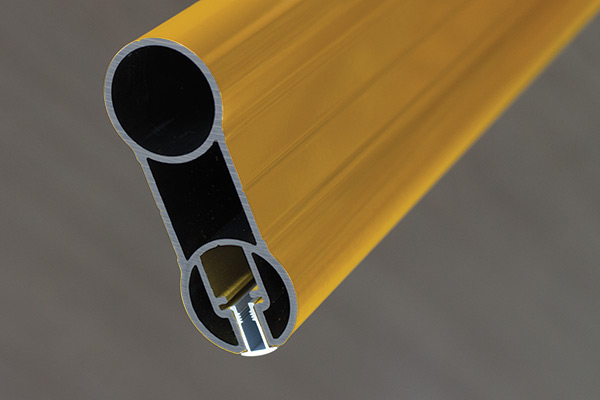

ER8030IS | ER Infill strip 2 metres long - Anodised (pictured below -used to conceal slot in rail) |

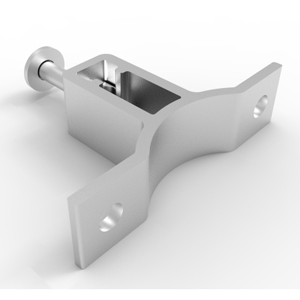

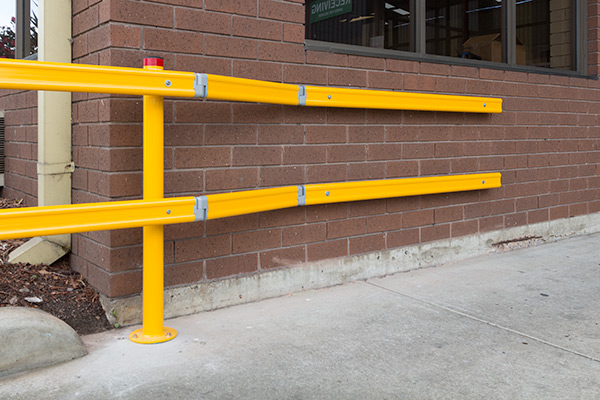

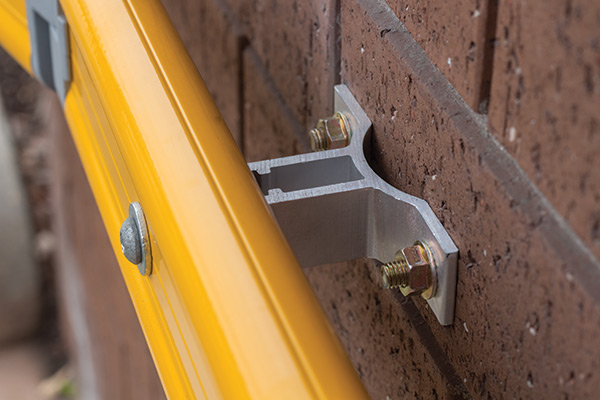

RWB63-A | Rail-to-wall bracket (pictured below) |

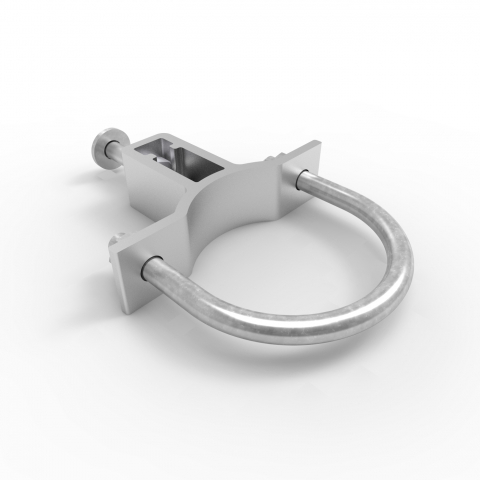

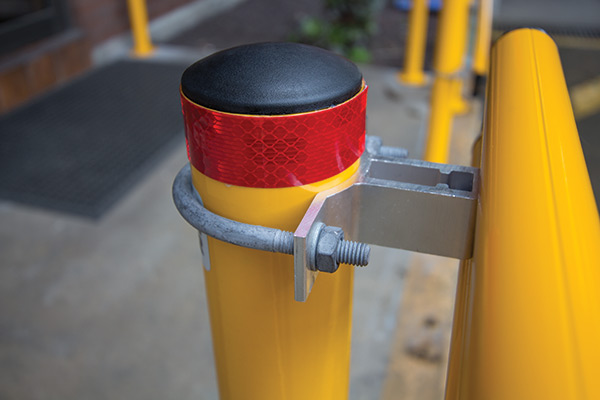

RPB63-A | Bracket to suit 63mm Post (pictured below) |

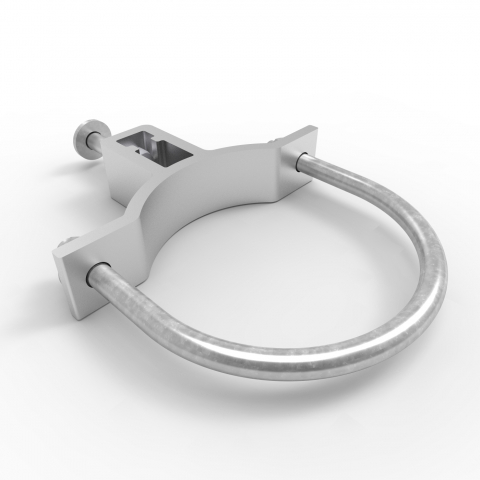

RPB90-A | Bracket to suit 90mm Post |

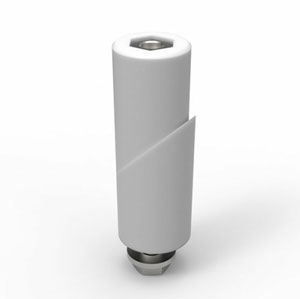

ER-RAK | In Rail Adaptor Kit |

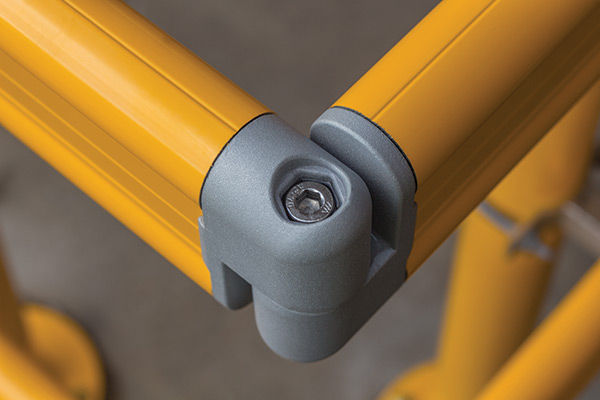

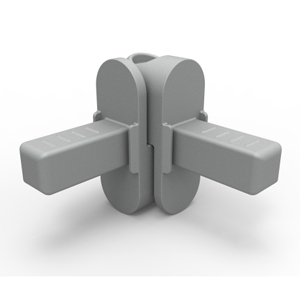

ERK-A | Knuckle Assembly - P/Coated aluminium (pictured below) |

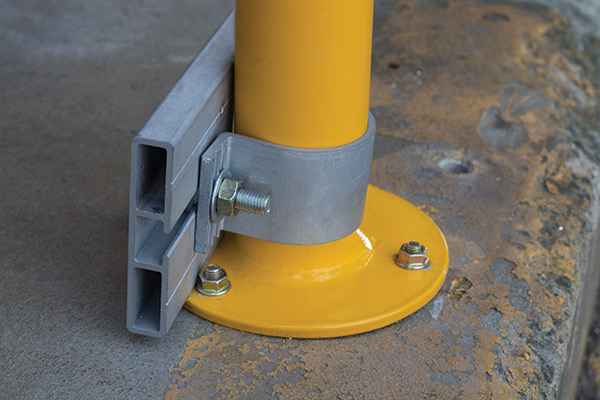

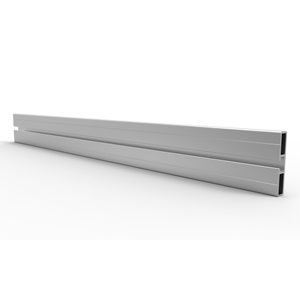

TB100-A | Toe Board 100mm 6 metres - Aluminium (pictured below) |

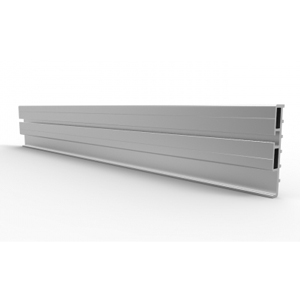

TB150-A | Toe Board 150mm Heavy 6 metres - Aluminium |

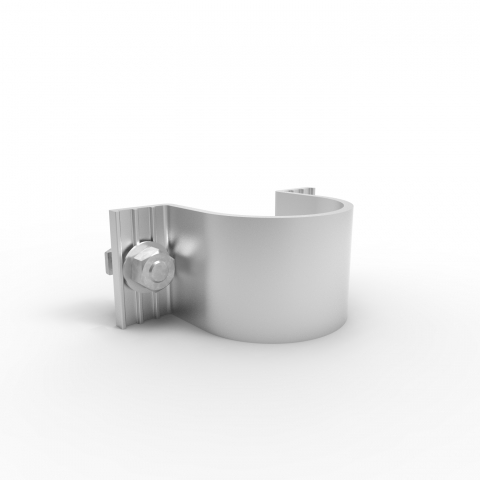

TBC63-A | Toe Board Clamp 63mm Post |

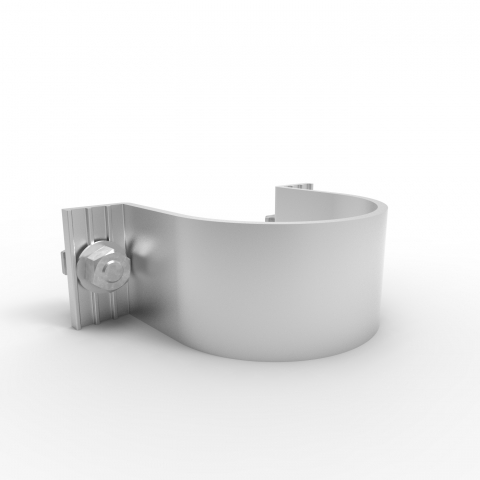

TBC90-A | Toe Board Clamp 90mm Post |

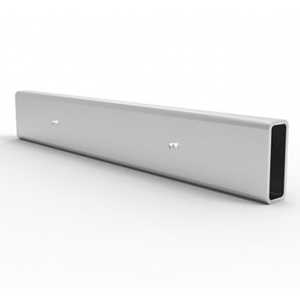

TBJ200 | Toe Board Joiner |
