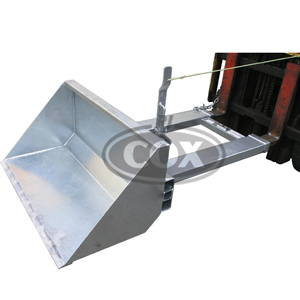

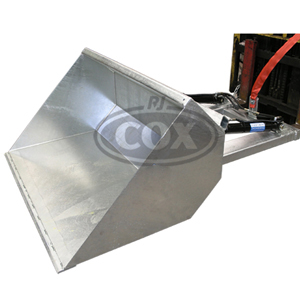

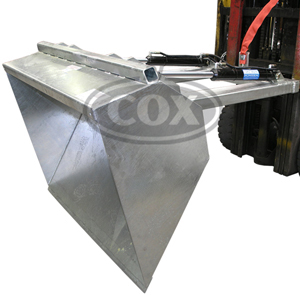

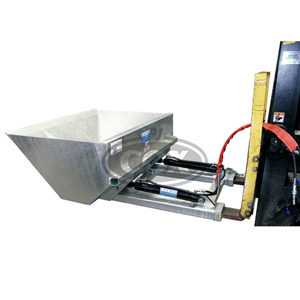

The hydraulic dirt bucket forklift attachment slips onto the forklift tines and is operated with the "Quick Connect" hydraulic couplings.
Features of Hydraulic Dirt Bucket for Forklift Attachment:
Specifications of Hydraulic Dirt Buckets:
Pocket size: 185 x 65mm
Pocket centres: 750mm
Bucket widths: 1200mm & 1800mm
Safe Working Load: 1000kg
Model: | DBHS2-12 | DBHS2-18 |
Unit Weight: | 315kg | 390kg |
Horizontal C of G: | 1050mm | 1120mm |
Vertical C of G: | 165mm | 140mm |
Capacity: | 0.50 cu/m | 0.90 cu/m |
