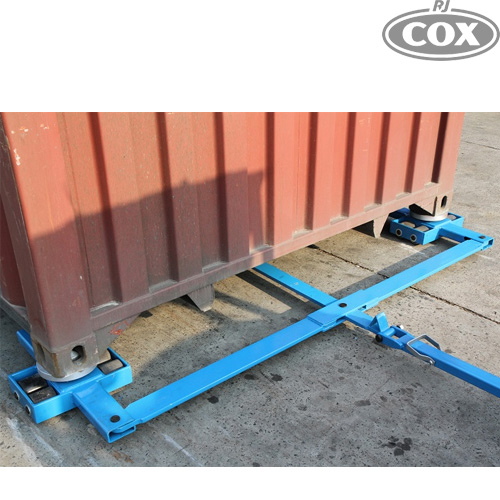

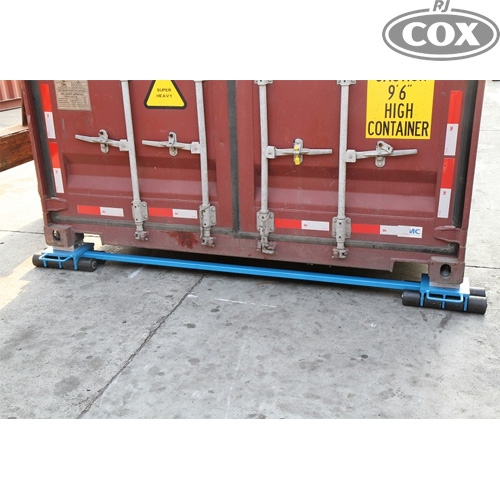

The Container Skate Assembly Kit offers a robust solution for efficiently moving heavy loads, including industrial machinery, shipping containers, and prefab concrete structures. Its durable construction ensures reliable performance in various environments, making it a versatile choice for transport applications.
Key features of Container Skate Assembly Kit:
Durable Construction: Constructed from high-quality materials, the Container Skate Assembly Kit is designed to withstand heavy loads and rugged conditions, ensuring long-term durability.
Versatile Application: The Container Skate Assembly Kit is suitable for transporting a wide range of heavy loads, including industrial machines, shipping containers, and prefab concrete structures. It provides a versatile solution for various transportation needs.
Enhanced Maneuverability: The Container Skate Assembly Kit's double roller design reduces friction forces, resulting in dramatically easier steering and the ability to maneuver heavy loads with precision and control.
Deck Height: The container sits on a deck with a height of 155mm, providing stable support for the transported load.
Limited Handle Rotation: The handle can be turned a maximum of 45 degrees left or right, ensuring controlled and precise maneuvering during transport operations.

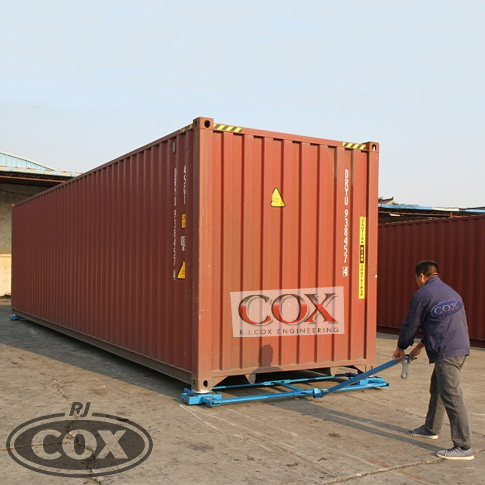

Turning Circle: The turning circle for 20-ft containers has a radius of 6m, while for 40-ft containers, it has a radius of 10m, allowing for efficient navigation in confined spaces.

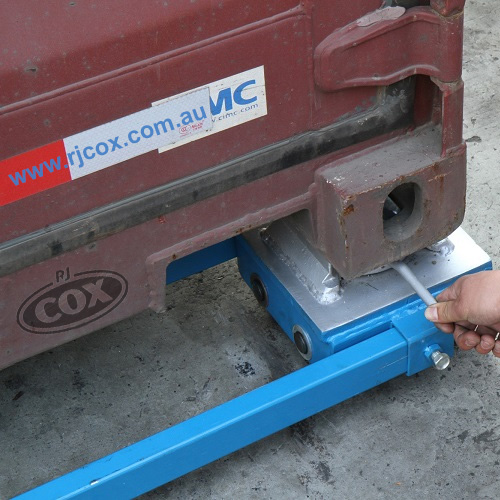

Secure Locking Mechanism: The container is secured by a twist-lock system on the front and back, ensuring safe and stable transportation.
Interlocking with Container: Interlock provides a force-fit connection that enhances stability and security during transport.
Wheel Material Options: Made of Nylon, offering a smooth and easy run on concrete floors. Additionally, Polyurethane wheels are available for specific application requirements.
Model | MCS32N | Steering | Back |
Capacity | (Ton) | 16 | 16 |
Number of Rollers | (Qty) | 16 | 16 |
Castor Size | (mm) | 85x90 | 85x90 |
Overall Size | (mm) | 2850x1030x160 | 2500x300x600 |
Net Weight | (kg) | 160 | 70 |
Fitting Height | (mm) | 160 | 160 |
Width of Track & Connecting Rod | (mm) | N/A | 2260 |
Cassette Dimensions: L2xB2 | (mm) | 800x570 | N/A |
