The ECOBULK IBC 1000 Litre Pods are intermediate bulk containers designed for the safe transport and storage of liquids, and they are suitable for a range of industries, including chemical plants, pharmaceutical companies, paint manufacturing plants, oil and lubricant companies, and more.
Here are the key features of these IBC containers:
Low Weight and Maximum Safety: These containers are designed to be lightweight while ensuring maximum safety. This combination of features makes them user-friendly and easy to handle.
Compliance with Statutory Requirements: The containers exceed statutory requirements in pressure stacking tests, providing added safety and reliability during transport and storage.
Collision Resistance: They offer increased collision resistance, reducing the risk of damage to the container or its contents in case of accidental impacts.
Stacking Resistance: The containers have improved stacking resistance due to 30% greater surface contact, ensuring they remain stable when stacked. They can be stacked up to 4 high when static, optimising space usage.
Corner Guards: Additional corner guards are included to protect the inner container, enhancing overall durability and protecting the contents.
UN-Certified: The ECOBULK MX is U.N.-certified (UN31HA1/Y), indicating that it meets international standards for transporting liquids with a maximum density of 1.9.
Inner Bottle Material: The inner container is extrusion blow-molded high-density polyethylene (HDPE). HDPE is known for its chemical resistance and durability.
Outer Container: The outer container features a welded warp-resistant tubular steel grid that is galvanised. It is equipped with an identification plate for easy recognition.
Bottom Plate: The bottom plate provides stability and helps minimise the residual contents left in the inner container, ensuring efficient use of the liquid.
Forklift Accessibility: The steel frame of the container has a four-way forklift entry, making it easy to handle and transport.
Filling Opening: The container has a DN 150mm opening with a screw cap for easy filling and emptying.
Footprint and Height: The container has a footprint of 1000mm x 1200mm and a height of 1165mm. Its steel skid design provides stability and ease of handling.
Part Numbers: 1297635 Dangerous Goods Approved
Standard Thread Type: S60 x 6 thread type, a European-style thread.

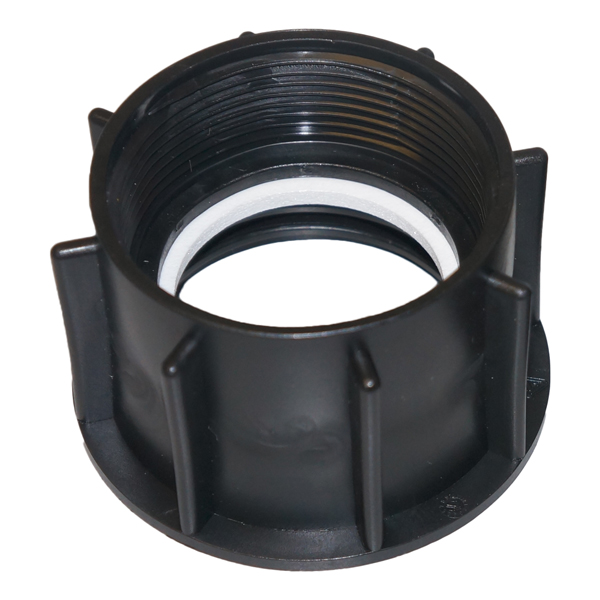

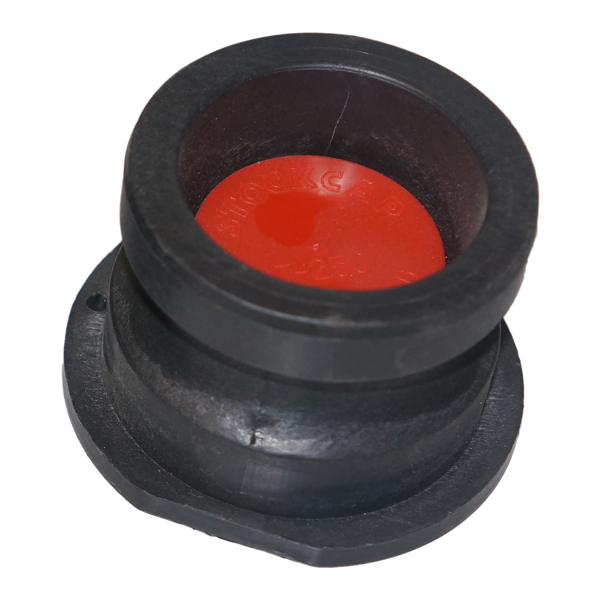

Please find below adapters to make it easier to convert to Australian standards
1,200 x 1,000 x 1,160mm (L x W x H)
56kg steel
Max 4 high
We are strongly committed to the highest standard of Professional Services regarding environmental safeguards and Public Safety. We ensure that we comply with all Environment Protection Authority (EPA) provisions and regulations of the NSW Dangerous Goods Act, along with Sydney Water and Local Government Authority requirements.
ECOBULK have specially designed valves to ensure safe and precise control when discharging substances of various viscosities.
Attention:
The abovementioned statements are based on our present knowledge and experience. They do not discharge the user from their own tests. A legal
obligation cannot be derived from our statements. The customer must observe local laws and regulations on their own responsibility.
The Customer or Filler is responsible for testing the material compatibility of the filling material with the packaging as well as the general suitability
for the intended purpose.
