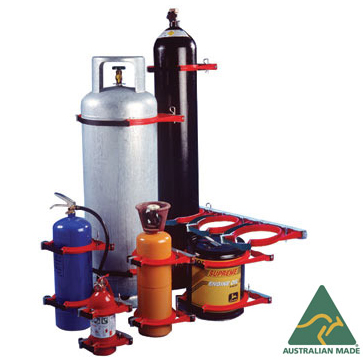

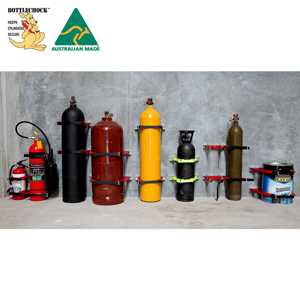

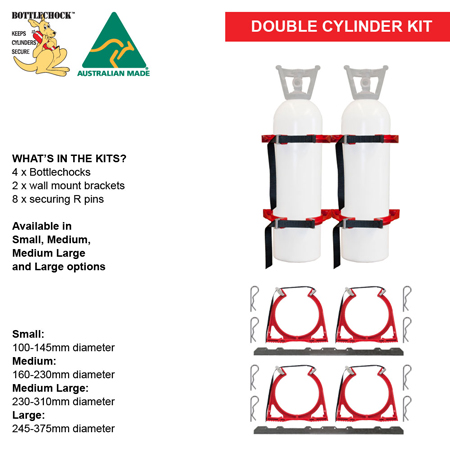

Bottlechock Gas Cylinder Holders are specially designed to ensure the safe and secure storage of various cylindrical objects such as gas cylinders, oxygen tanks, fire extinguishers, oil drums, and piping.
The unique design of Bottlechock allows for complete contact with the cylinder, while its flexibility makes it easy to snap cylinders into place.
Features of Bottlechock Gas Cylinder Holders:
RED
YELLOW **Upon receipt of Emailed Order Confirmation, please specify by return email if you require YELLOW**
Tried and tested in workshops and harsh outback conditions across the county.
Specifications of BottleChocks

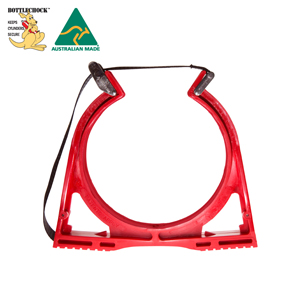

Chock material: | Flexible UV stabilised nylon restraint is highly combustion resistant and self-extinguishing |
Metal Components: | anufactured from stainless steel for strength and corrosion resistance (excluding mounting brackets) |
Brackets: |
1.6mm thick Galvanised - The steel brackets are galvanised for corrosion resistance 316 Stainless Steel - improved corrosion resistance ideal for marine and specialty applications |
Colour: | RED or YELLOW (Red supplied as standard - Please specify upon receipt of Order Confirmation if Yellow is required) |
Size - Cylinder Diameter:
Small (S): | (100-145mm) |
Medium (M): | (160-230mm) |
Medium Large (ML): | (230-310mm) |
Large (L) : | (245-375mm) |

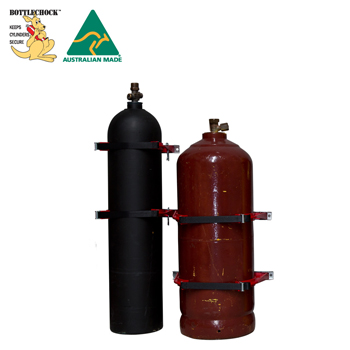

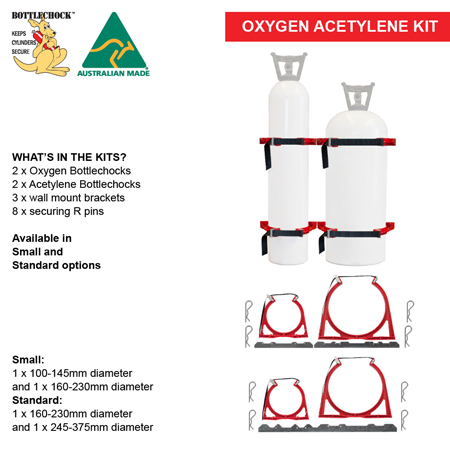

Special kits BGOXYACET and BSTOXYACET hold large Acetylene/Propane and D, E or G Oxygen on a common bracket.
Code |
Code | Mounting Bracket | No of Cylinders | Diameter Range |
Red | Yellow | |||

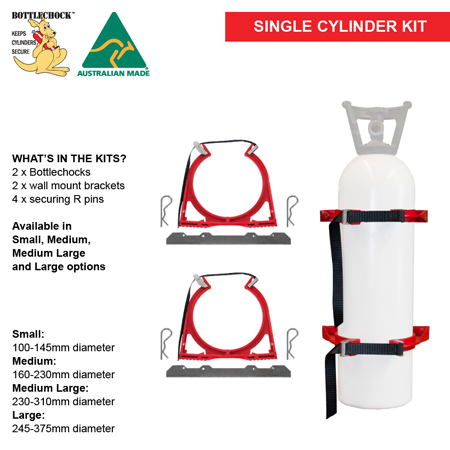

BG1S | BG1S YW | Galvanised | 1 | 100-145mm |
BST1S | BST1S YW | Stainless | 1 | 100-145mm |
BG2S | BG2S YW | Galvanised | 2 | 100-145mm |
BST2S | BST2S YW | Stainless | 2 | 100-145mm |

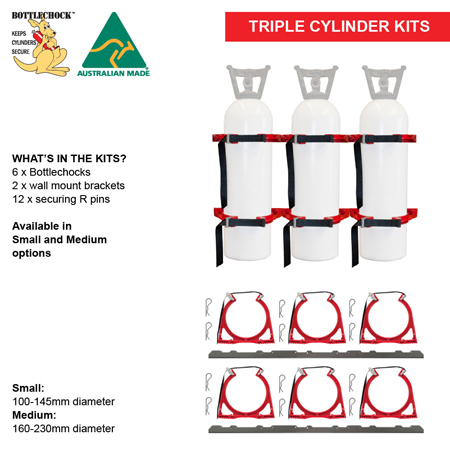

BG3S | BG3S YW | Galvanised | 3 | 100-145mm |
BST3S | BST3S YW | Stainless | 3 | 100-145mm |

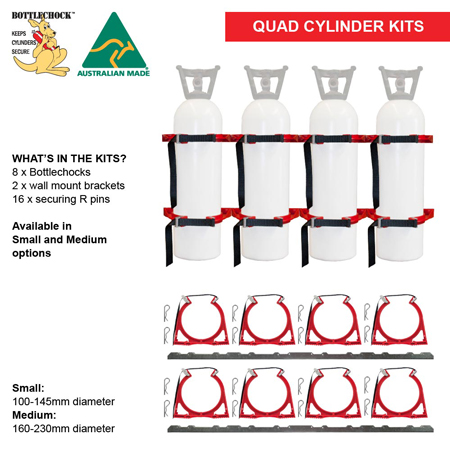

BG4S | BG4S YW | Galvanised | 4 | 100-145mm |
BST4S | BST4S YW | Stainless | 4 | 100-145mm |
BG1M | BG1M YW | Galvanised | 1 | 160-230mm |
BST1M | BST1M YW | Stainless | 1 | 160-230mm |
BG2M | BG2M YW | Galvanised | 2 | 160-230mm |
BST2M | BST2M YW | Stainless | 2 | 160-230mm |
BG3M | BG3M YW | Galvanised | 3 | 160-230mm |
BST3M | BST3M YW | Stainless | 3 | 160-230mm |
BG4M | BG4M YW | Galvanised | 4 | 160-230mm |
BST4M | BST4M YW | Stainless | 4 | 160-230mm |
BG1ML | Galvanised | 1 | 230-310mm | |
BST1ML | Stainless | 1 | 230-310mm | |
BG2ML | Galvanised | 2 | 230-310mm | |
BST2ML | Stainless | 2 | 230-310mm | |
BG1L | BG1L YW | Galvanised | 1 | 245-375mm |
BST1L | BST1L YW | Stainless | 1 | 245-375mm |
BG2L | BG2L YW | Galvanised | 2 | 245-375mm |
BST2L | BST2L YW | Stainless | 2 | 245-375mm |
