Fallshaw M Stainless Medium Duty 140kg capacity Castors 100mm Grey Rubber Wheels.
Features of 100mm Grey Rubber Fallshaw M Stainless Castors and Wheels:
Specifications of MSC100G Wheels with Threadguard:
Diameter: | 100mm |
Tread: | 34mm |
Hub: | 40mm |
Bore: | 8mm |
Bush: | 8mm |
Bearing: | Stainless Steel Precision Bearing |
Material: | Grey Rubber |
Specifications of MSC100G Castors 100mm dia Wheels with Threadguard:
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |

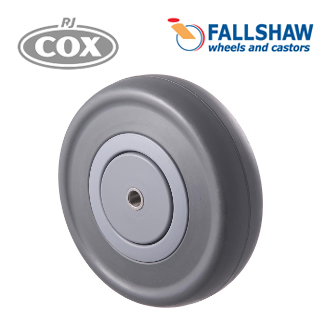

MSC100G | 100mm dia Wheel | 100 | 140 | 135 | - |

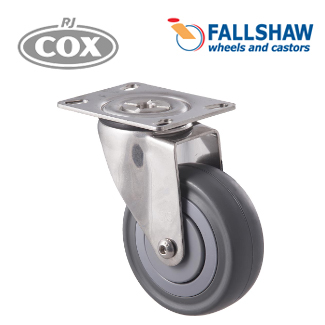

MSC100G/MSP | Swivel Plate | 91 | |||
MSC100G/MSPTB | Swivel Plate Total Brake | 128 | |||

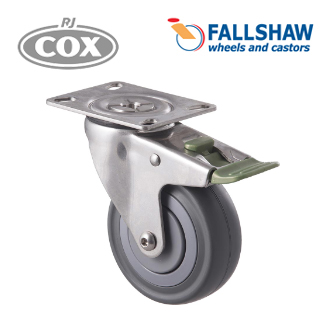

MSC100G/MSPDL | Swivel Plate Direction Lock | 128 | |||
MSC100G/MSF | Fixed Plate | - | |||

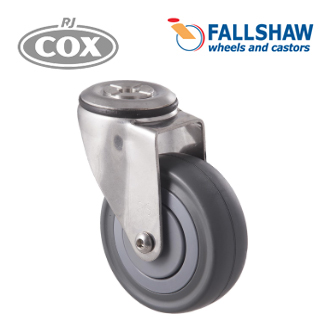

MSC100G/MSH | Bolt Hole | 91 | |||

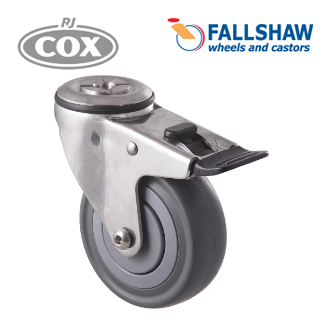

MSC100G/MZSTB | Bolt Hole Total Brake | 128 | |||

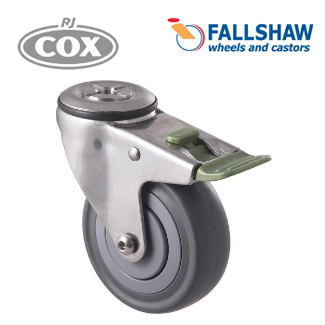

MSC100G/MZSDL | Bolt Hole Direction Lock | 128 |
