Fallshaw 304 Stainless Steel O-Series Heavy Duty 230kg capacity Castors - 150mm dia Blue Hi-resilience Rubber (Hi-Res) Wheels

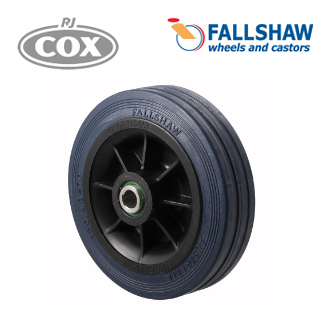

Specifications of HBS150 Non-Marking Wheels
Diameter: | 150mm |
Tread: | 28mm |
Hub: | 60mm |
Bore: | 20mm (no bush) |
Bush: | 12.7mm |
Bearing: | Stainless Steel Roller Bearing |
Material: | Blue Hi-resilience Rubber (Hi-Res) |
Base Plate: | ISO (Standard) or NA (North American) |
Specifications of HBS150 150mm dia Stainless Steel Castors
Castor Code | Description |
Wheel Diameter (mm) |
Max Load (kg) | Mount Height (mm) | Turning Radius (mm) |
HBS150 | 150mm dia Wheel | 150 | 230 | 189 | - |

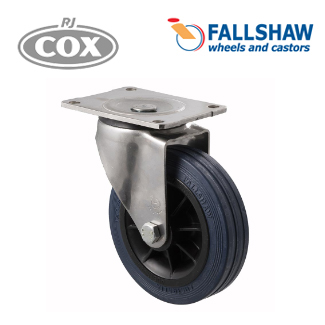

HBS150/OSP | Swivel Plate | 121 | |||
HBS150/HSF | Fixed Plate | - | |||

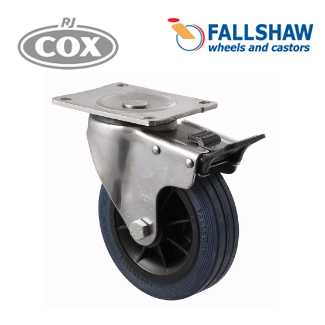

HBS150/OSPTB | Total Brake | 140 | |||
HBS150/OSPDL | Swivel Plate Direction Lock | 140 | |||
Add N for NA Base Plate |
