Manual Roll Lift trucks handle rolls of various materials in industries such as printing, packaging, paper, etc.
These trucks are manually operated and have several features to facilitate the efficient and safe handling of heavy and delicate roll materials.
Here are the key features:
High-Resistance Steel Structure: The roll lift truck uses high-resistance steel rolled sections. This design ensures the highest degree of strength and durability, allowing it to withstand the demands of industrial applications and heavy-roll materials.
Handling of Large and Heavy Rolls: This equipment is designed to handle large and heavy rolls easily. It provides the necessary support and stability to transport rolls of various sizes and weights, making it suitable for multiple industries.
Simple Hydraulic Hand Pump: The manual operation of the roll lift truck is facilitated by a simple hydraulic hand pump. This pump allows the user to raise or lower the rolls as needed, making the handling process efficient and reducing the physical effort required.
Material Protection: One of the key benefits of using a roll lift truck is that it helps reduce or eliminate material damage when moving rolls. The equipment provides controlled and secure handling, minimizing the risk of damage to delicate materials, such as paper, textiles, or other roll-based products.
Colour Variability: The colour of the roll lift truck may vary. While the colour may change, the key focus is on the equipment's functionality and ability to handle rolls effectively and safely.
Model: | PF4150R |
Capacity: | 400kg |
Max Platform Height: | 1500mm |
Min Platform Height: | 220mm |
Roll Diameter: | 200-600mm |
Roller Size: | Ø76x550mm |

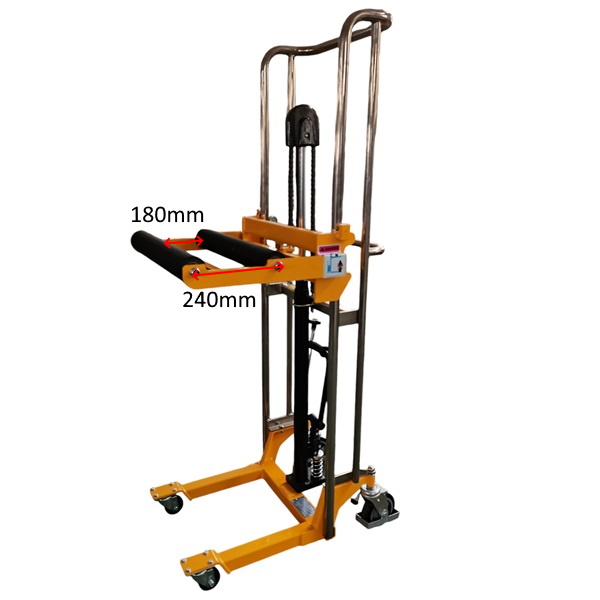

Distance Between Rollers: | 180mm |
Total Length: | 820mm |
Total Width: | 630mm |
Total Height: | 1595mm |
Steering Roller Size: | Ø150mm |
Load Roller Size: | Ø75x30mm |
Pump Strokes to Max Height: | 60 |
Net Weight: | 85kg |
In summary, Manual Roll Lift trucks are designed to simplify the handling of rolls in various industrial settings. Their robust steel construction, ease of use with a hydraulic hand pump, and the capability to handle large and heavy rolls make them valuable tools in industries where efficient and damage-free roll handling is essential.
